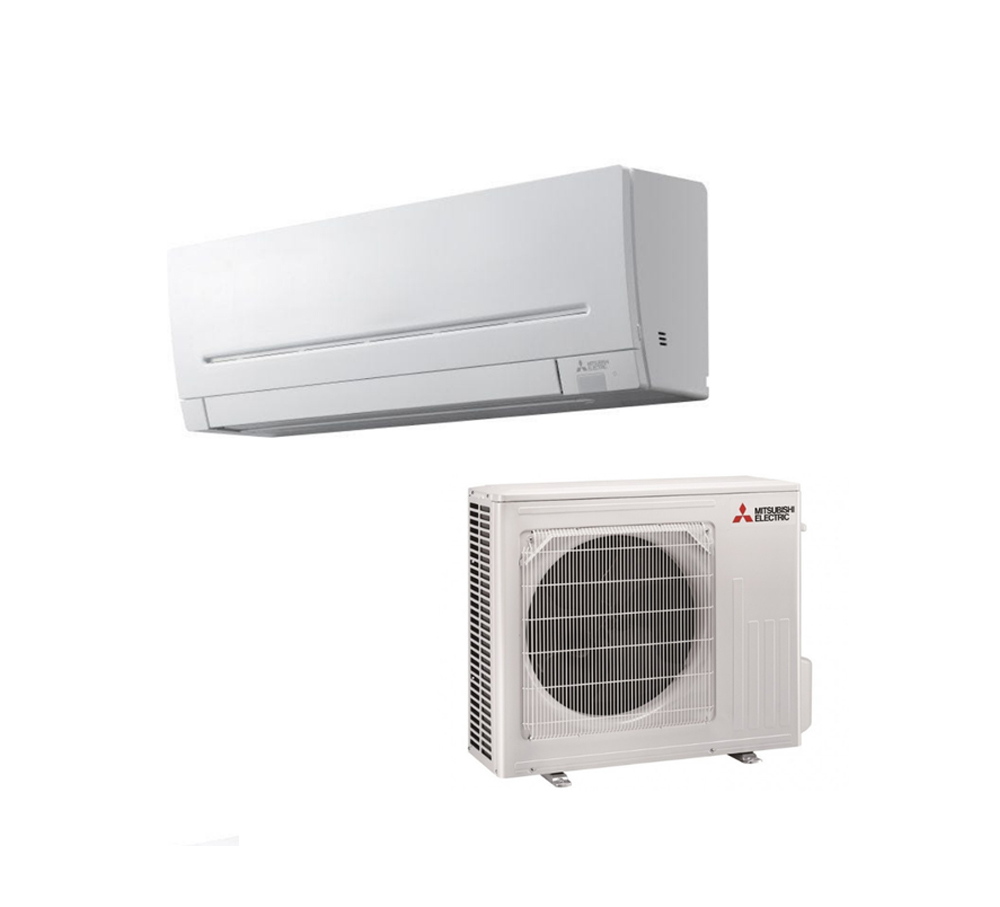

MITSUBISHI RAC SPLIT 1HP( NON-INVERTER)MS-JS10
MODEL :)MS-JS10VF
Cooling Capacity (Btu/hr) : 9,212
Capacity (Rated) [Btu/hr] : 9,212
Capacity (Rated) [kW] : 2.70
CSPF (kWh) : 3.59
Power Input (kW) : 0.84
Running Current (A) : 3.7
Power Supply : 230V, 50Hz (Single Phase)
Indoor Unit
Air Flow (Lo-S.Hi) [m3/min] : 4.4 - 11.8
Air Flow (Lo-S.Hi) [CFM] : 155 – 417
Noise Level (Lo-S.Hi) [dB(A)] : 25 – 43
Dimensions (W x D x H) [mm] : 799 x 232 x 290
Net Weight (kg) : 9.0
Out door Unit
Noise Level [dB(A)] : 50
Dimensions (W x D x H) [mm : 718 x 255 x 525
Net Weight (kg) : 26
Connection Method : Flared
Pipe Size (Gas mm) : 9.52
Outer Diameter (Liquid mm) : 6.35
Max Piping Length (m) : 20
Max Height Difference (m) : 10
